Patrol Boat
All the boat shell plates we use is CCS certified 5083 or DNV GL Certified 5083 5mm and 6mm .
They are the best material for the ship building industry .
1) All the drawing can be custom design Via CCS or other Classification , Easy for registery in your Marine department .
2) The most reliable Marine engine will be used or recommend , For example : OXE Diesel outboard for commercial boat , Mercury Diesel inboard & stern driver , Cummins Inboard & shaft Propeller .
3) Rich experience on different kind of tenders in overseas , include Patrol boat , Landing craft , Survey boat etc .
4) Strictly Survey inspection from boat owner to make sure al lthe specs are qualified to the tender .
and all the boat accessory are Marine grade .
5) Our boats are build to last a life time !
Product description
All the boat shell plates we use is CCS certified 5083 or DNV GL Certified 5083 5mm and 6mm .
They are the best material for the ship building industry .
1) All the drawing can be custom design Via CCS or other Classification , Easy for registery in your Marine department .
2) The most reliable Marine engine will be used or recommend , For example : OXE Diesel outboard for commercial boat , Mercury Diesel inboard & stern driver , Cummins Inboard & shaft Propeller .
3) Rich experience on different kind of tenders in overseas , include Patrol boat , Landing craft , Survey boat etc .
4) Strictly Survey inspection from boat owner to make sure al lthe specs are qualified to the tender .
and all the boat accessory are Marine grade .
5) Our boats are build to last a life time !
Specification
| Length Over All, LOA(m) | 11 |
| Length Of Water Line, LWL(m) | 10 |
| Beam,BOA | 3.35 |
| Beam,BWL | 2.66 |
| Depth(m) | 1.49 |
| Draft(m) | 0.5 |
| Bottom Sides(mm) | 6 |
| Top Sides(mm) | 5 |
| Transom(mm) | 6 |
| Hull Material | Marine Grade Aluminum Alloy 5083 |
| Rec.HP | Outboard 300*2 |
Features and Options
Standard Features
Fuel Tank Gauge √
Fuel Tank Cleaning Opening √
Outboard Protection Rails √
Storage Gasket Cover √
Fuel Tank 600L
Lifebuoy Bracket √
Fire Extinguisher Bracket √
Deck Self Drain Holes √
Exhaust Vent Hose √

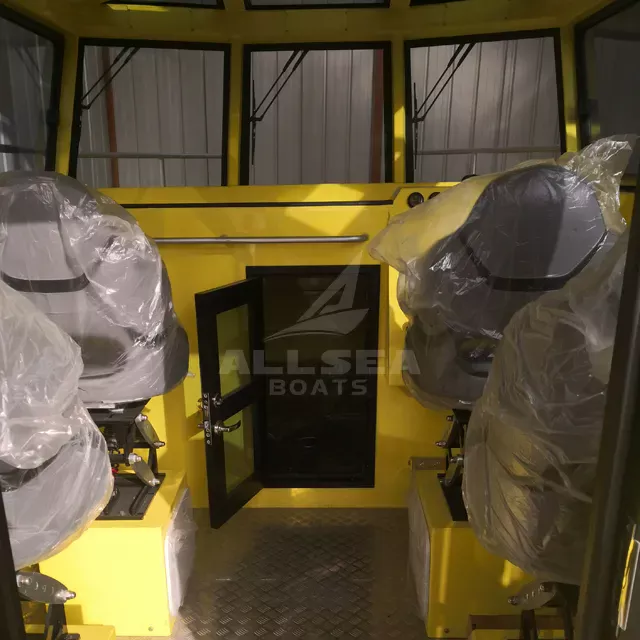

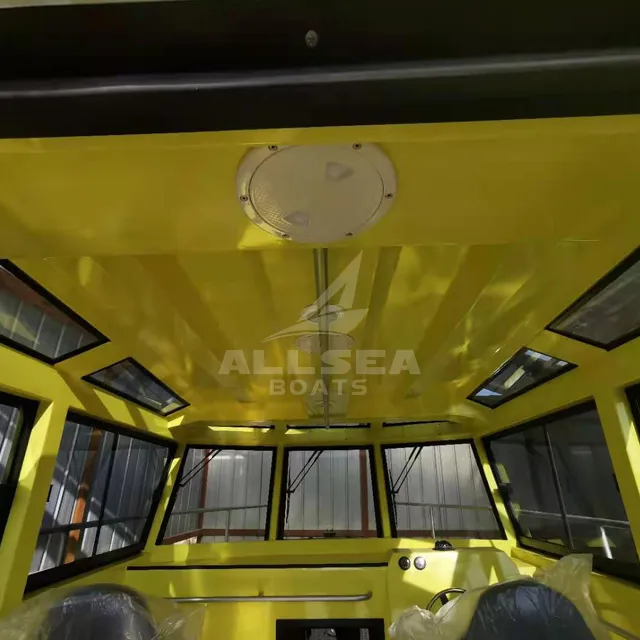

Enclosed Driving Room √
Hand Rail √
Bollard √
Hinge √
Control Panel √
Fence Of Driving Room √
Ladder √
Marine Pilot Seat With Damping √
Bench With Storage Boxes √
Fuel Hose √
Control Panel √
Zinc √
Safety Door Hinge √
Navigation Light √
Anchor Light √
Marine Hinch Cover √
